Compare Systems

Compare AES Group engineering vacuum systems and laboratory air systems side by side to find the right solution for your facility. Use the toggle above to switch between model groups, then apply filters to narrow in on the ideal configuration for your project.

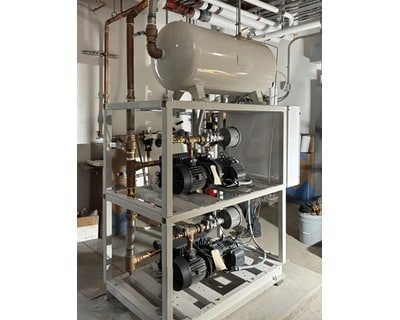

laboratory Vacuum Systems

This model selector is designed to help engineers and designers quickly identify the right vacuum system configuration—based on actual specs from AES Group projects. Instead of searching through dozens of cut sheets, use this tool to view layouts, capabilities, and configurations side by side in one place.

Use filters below to narrow down options by SCFM, technology type, mount style, and more.

Filter & Sort Systems

AES Group

Becker

Busch

Dekker

Powerex

Busch

Mount Type:
Oil Flooded Rotary Vane w/ Auto Purge

Model Number:
TTMD-2-AESLAB063

SCFM @ 20" HgVAC:
13.7

SCFM @ 25" HgVAC:
6.4

Operating Vacuum Range (HgVAC):
18" to 29.92"HGVAC

Mount Type:
Tank Mount

Mount Type:
Duplex

Powerex

Mount Type:
Oil Flooded Rotary Vane w/ Auto Purge

Model Number:
AES-LVPT0755-SPL-Stack

SCFM @ 20" HgVAC:
104

SCFM @ 25" HgVAC:
44

Operating Vacuum Range (HgVAC):
18" to 29.92"HGVAC

Mount Type:
Stack Mount

Mount Type:
Triplex

Becker

Mount Type:
Oil Flooded Rotary Vane w/ Auto Purge

Model Number:
DT100L/P3-AES-SPL

SCFM @ 20" HgVAC:
25.8

SCFM @ 25" HgVAC:
9.17

Operating Vacuum Range (HgVAC):
18" to 29.92"HGVAC

Mount Type:
Tank Mount

Mount Type:
Duplex

Becker

Mount Type:
Oil Flooded Rotary Vane w/ Auto Purge

Model Number:
DT165L/P3-AES-SPL

SCFM @ 20" HgVAC:
36.8

SCFM @ 25" HgVAC:
14.95

Operating Vacuum Range (HgVAC):
18" to 29.92"HGVAC

Mount Type:
Tank Mount

Mount Type:
Duplex

Becker

Mount Type:
Oil Flooded Rotary Vane w/ Auto Purge

Model Number:
DT200L/P3-AES-SPL

SCFM @ 20" HgVAC:
44

SCFM @ 25" HgVAC:
17.88

Operating Vacuum Range (HgVAC):
18" to 29.92"HGVAC

Mount Type:
Tank Mount

Mount Type:
Duplex

Powerex

Mount Type:
Oil Flooded Rotary Vane w/ Auto Purge

Model Number:
AES-LVPDT0752-SPL-

SCFM @ 20" HgVAC:
52

SCFM @ 25" HgVAC:
22

Operating Vacuum Range (HgVAC):
18" to 29.92"HGVAC

Mount Type:
Tank Mount

Mount Type:
Duplex

Powerex

Mount Type:
Oil Flooded Rotary Vane w/ Auto Purge

Model Number:
AES-LVPD0755-SPL-

SCFM @ 20" HgVAC:
52

SCFM @ 25" HgVAC:
22

Operating Vacuum Range (HgVAC):
18" to 29.92"HGVAC

Mount Type:
Stack Mount

Mount Type:
Duplex

Powerex

Mount Type:
Oil Flooded Rotary Vane w/ Auto Purge

Model Number:
AES-LVVD0303-SPL

SCFM @ 20" HgVAC:
17

SCFM @ 25" HgVAC:
6.0

Operating Vacuum Range (HgVAC):
18" to 29.92"HGVAC

Mount Type:
Tank Mount

Mount Type:
Duplex

Powerex

Mount Type:
Oil Flooded Rotary Vane w/ Auto Purge

Model Number:
AES-LVD1005-SPL-

SCFM @ 20" HgVAC:
77

SCFM @ 25" HgVAC:
33

Operating Vacuum Range (HgVAC):
18" to 29.92"HGVAC

Mount Type:
Tank Mount

Mount Type:
Duplex

Powerex

Mount Type:
Oil Flooded Rotary Vane w/ Auto Purge

Model Number:
AES-LVPD1005-SPL-

SCFM @ 20" HgVAC:
77

SCFM @ 25" HgVAC:
33

Operating Vacuum Range (HgVAC):
18" to 29.92"HGVAC

Mount Type:
Stack Mount

Mount Type:
Duplex

Powerex

Mount Type:
Oil Flooded Rotary Vane w/ Auto Purge

Model Number:
AES-LVPD1505-SPL-

SCFM @ 20" HgVAC:
111

SCFM @ 25" HgVAC:
51

Operating Vacuum Range (HgVAC):
18" to 29.92"HGVAC

Mount Type:
Stack Mount

Mount Type:
Duplex

Powerex

Mount Type:
Oil Flooded Rotary Vane w/ Auto Purge

Model Number:
AES-LVPDT0502-SPL-

SCFM @ 20" HgVAC:
37

SCFM @ 25" HgVAC:
17

Operating Vacuum Range (HgVAC):
18" to 29.92"HGVAC

Mount Type:
Tank Mount

Mount Type:
Duplex

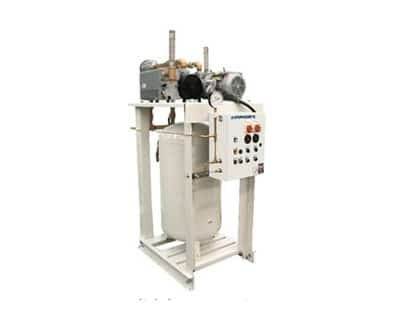

Laboratory Air Systems

This page helps engineers and facility managers quickly evaluate and compare leading laboratory compressed air systems by technology, pressure rating, brand, and performance. Use the filters above to find the system best suited to your specific operational needs and ensure efficient, reliable lab air delivery.

Filter & Sort Systems

Atlas Copco

Powerex

Quincy

Powerex

Model Number:
LSE4005HP-AES-SPL

Module SCFM @ 145 PSIG:
12.5

System Capacity SCFM @ 145 PSIG:
100

Technology Type:
Oil Less Enclosed Scroll

Powerex

Model Number:
LST15A5-AES-SPL

Module SCFM @ 145 PSIG:
37.5

System Capacity SCFM @ 145 PSIG:
112.5

Technology Type:
Oil Less Open Scroll

Powerex

Model Number:
LSP15A6-AES-SPL

Module SCFM @ 145 PSIG:
37.5

System Capacity SCFM @ 145 PSIG:
187.5

Technology Type:
Oil Less Open Scroll

Powerex

Model Number:
LST10A5-AES-SPL

Module SCFM @ 145 PSIG:

System Capacity SCFM @ 145 PSIG:
75

Technology Type:
Oil Less Open Scroll

Powerex

Model Number:
LSD02A3-AES-SPL

Module SCFM @ 145 PSIG:
4.6

System Capacity SCFM @ 145 PSIG:
9.2

Technology Type:
Oil Less Open Scroll

Powerex

Model Number:
LSD03A3-AES-SPL

Module SCFM @ 145 PSIG:
7.1

System Capacity SCFM @ 145 PSIG:
14.2

Technology Type:
Oil Less Open Scroll

Powerex

Model Number:
LSD05A3-AES-SPL

Module SCFM @ 145 PSIG:
12.5

System Capacity SCFM @ 145 PSIG:
25

Technology Type:
Oil Less Open Scroll

Powerex

Model Number:
LSD0754-AES-SPL

Module SCFM @ 145 PSIG:
17

System Capacity SCFM @ 145 PSIG:
34

Technology Type:
Oil Less Open Scroll

Powerex

Model Number:
LST05A3-AES-SPL-80

Module SCFM @ 145 PSIG:
12.5

System Capacity SCFM @ 145 PSIG:
37.5

Technology Type:
Oil Less Open Scroll

Powerex

Model Number:
LST05A4-AES-SPL-120

Module SCFM @ 145 PSIG:
12.5

System Capacity SCFM @ 145 PSIG:
37.5

Technology Type:
Oil Less Open Scroll

Powerex

Model Number:
LSQ05A4-AES-SPL

Module SCFM @ 145 PSIG:
37.5

System Capacity SCFM @ 145 PSIG:

Technology Type:
Oil Less Open Scroll

Powerex

Model Number:
LSE2005-AES-SPL

Module SCFM @ 145 PSIG:
51

System Capacity SCFM @ 145 PSIG:

Technology Type:
Oil Less Enclosed Scroll

Medical Vacuum Systems

This page helps engineers and facility managers quickly evaluate and compare leading medical vacuum systems by technology, vacuum level, brand, and performance. Use the filters above to find the system best suited to your facility and ensure reliable, code-compliant medical vacuum delivery.

Filter & Sort Systems

No data was found

Medical Compressed Air Systems

This page helps engineers and facility managers quickly evaluate and compare leading medical compressed air systems by technology, pressure rating, brand, and performance. Use the filters above to find the system best suited to your facility and ensure clean, reliable medical air delivery.

Filter & Sort Systems

No data was found
