• P/N VMXVFD0553MA2-AES-SPL

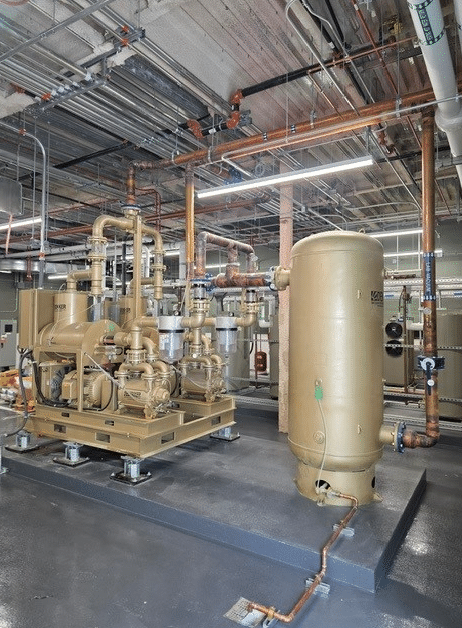

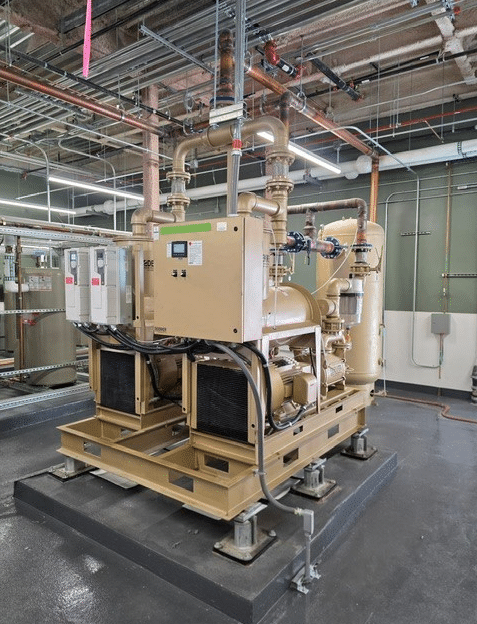

• Dekker VMAX Oil-Sealed Liquid Ring System
• System Capacity: 140 SCFM @ 26”HGVAC
• Capacity with (1) One Vacuum Pump in Reserve = 70 SCFM @ 26”HGVAC
• 70 SCFM @ 26”HGVAC (Each Vacuum Pump)
• NOTE: 110 SCFM @ 24”HGVAC (Each Vacuum Pump)
• Horsepower: 80 HP Total (40HP x 2)
• Receiver Size/Configuration: 400 Gal – Vertical
• Electrical: 208/230/460V, 3PH, 60Hz
• VMXVFD0553KA2-AES-SPL-Laboratory Vacuum System Specification-Base Mount
• Dekker VMX0053KA-Spec-Data Sheet
• Dekker VMX-VFD-Spec-Data Sheet
• VMXVFD0553KA2-AES-SPL-Schematic Design Drawing

*Please call to confirm price*

We guarantee all items are genuine Dekker Vacuum parts and carry the OEM warranty.
