Name: Dekker Laboratory Vacuum System Model VMX0153MA4-AES-SPL 40HP (P/N VMX0153MA4-AES-SPL)
SKU: VMX0153MA4-AES-SPL
Price: 150833.00 USD
Availability: InStock

Brand:
Dekker Vacuum Technologies

Category:
Dekker VMAX Oil-Sealed Liquid Ring Systems

Home » Shop » Dekker Laboratory Vacuum System Model VMX0153MA4-AES-SPL 40HP (P/N VMX0153MA4-AES-SPL)

Dekker Laboratory Vacuum System Model VMX0153MA4-AES-SPL 40HP (P/N VMX0153MA4-AES-SPL)

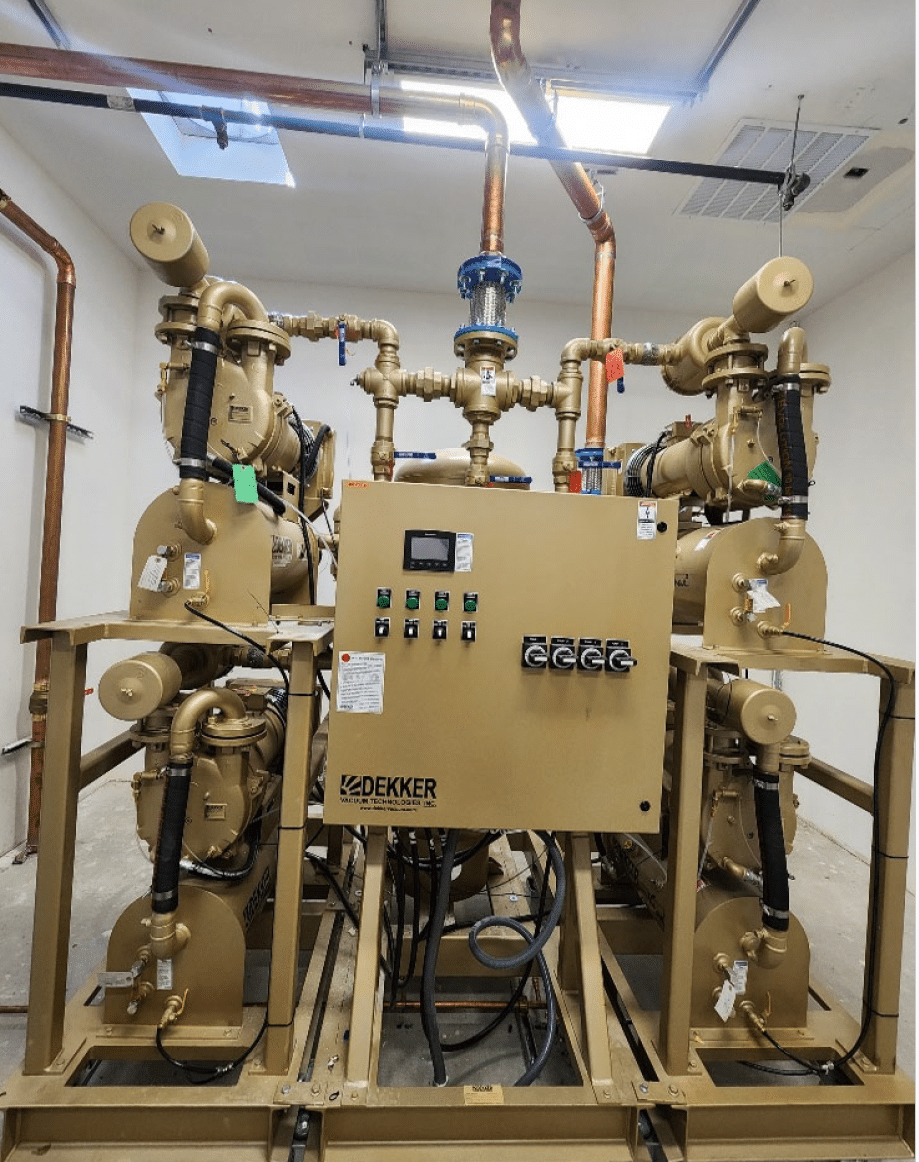

A Dekker Laboratory Vacuum System Model VMX0153MA4 40HP (P/N VMX0153MA4-AES-SPL) with multiple pipes and control panel is installed in a utility room with exposed copper piping and concrete flooring.

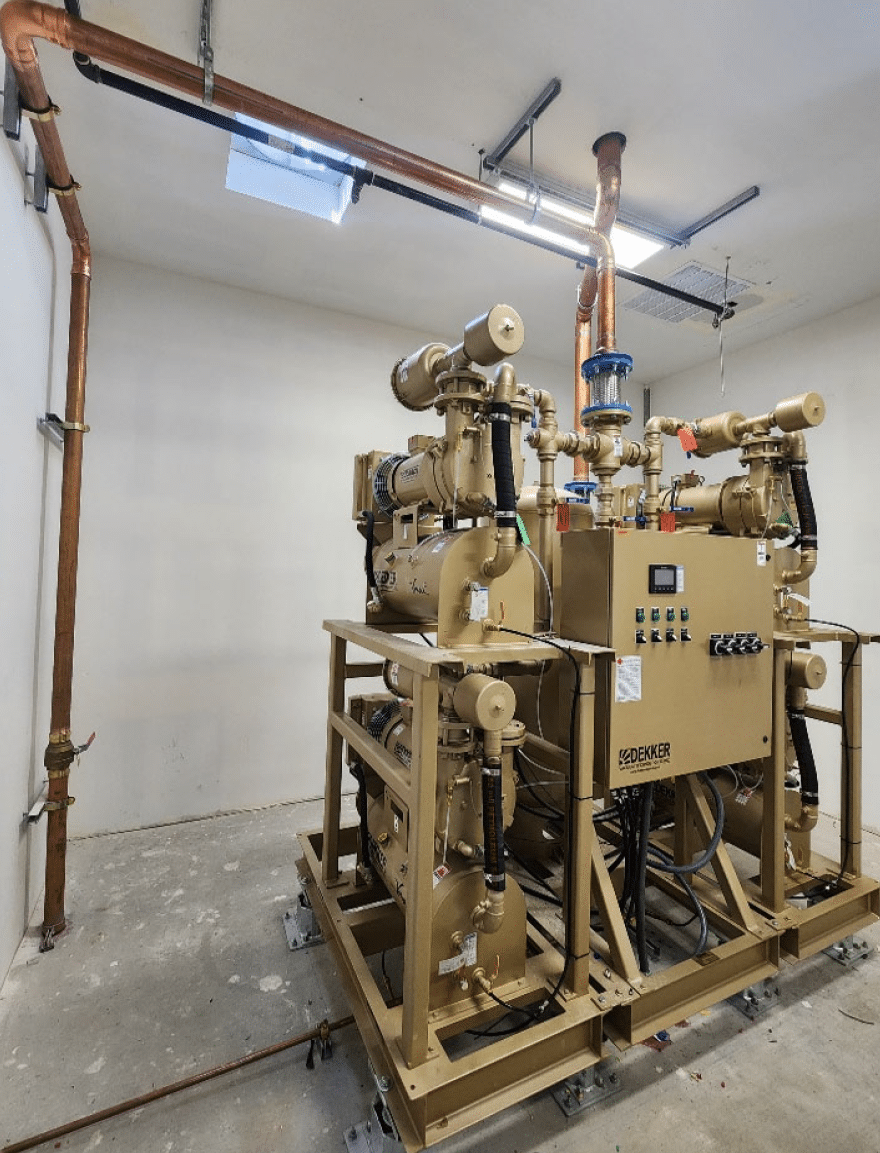

A Dekker Laboratory Vacuum System Model VMX0153MA4 40HP (P/N VMX0153MA4-AES-SPL) with tan pipes, gauges, and control panel sits in a clean white room with exposed copper piping and a bare concrete floor.

Four Dekker Laboratory Vacuum System Model VMX0153MA4 40HP units (P/N VMX0153MA4-AES-SPL) with copper pipes and a central "DEKKER" control panel are mounted on a metal frame in a utility room with white ceiling and floor.

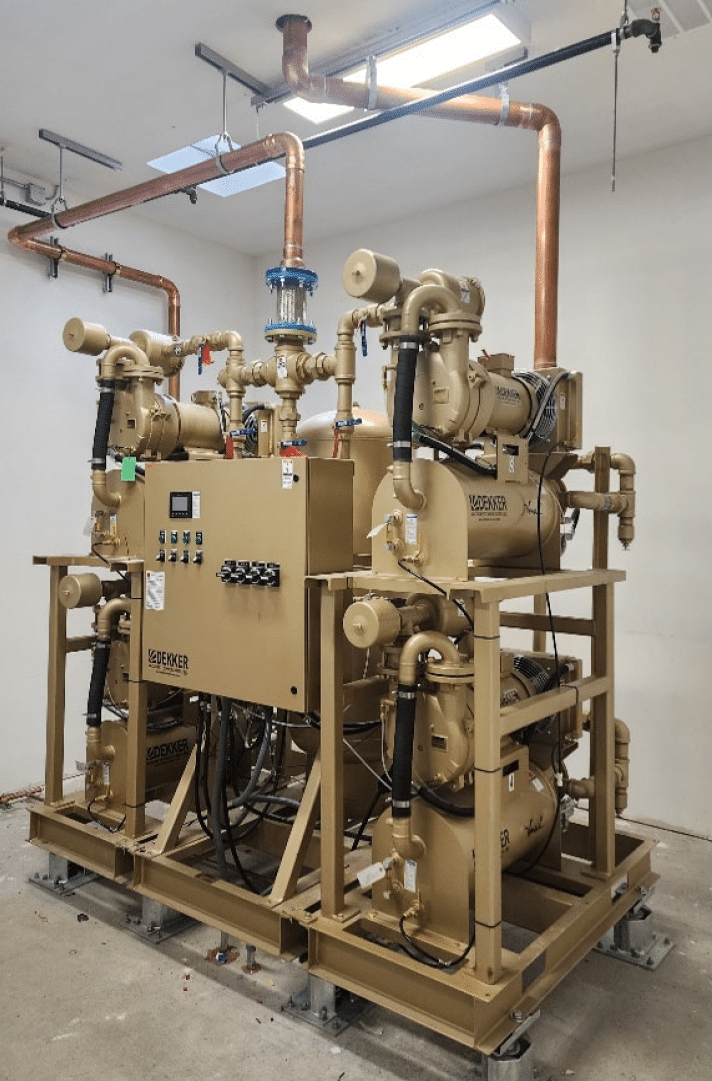

Dekker Laboratory Vacuum System Model VMX0153MA4 40HP (P/N VMX0153MA4-AES-SPL) with tan compressors, pipes, valves, and a central control panel installed in a clean mechanical room with white walls and exposed copper piping overhead.

Details

P/N VMX0153MA4-AES-SPL
System Capacity: 74.68 SCFM @ 26”HGVAC (Capacity with (1) One Vacuum Pump in Reserve = 56.01 SCFM @ 26”HGVAC)
Horsepower: 40HP Total (10HP x 4)
Receiver Size/Configuration: 120 Gal – Vertical
Electrical: 208/230/460V, 3PH, 60Hz
VMX0153MA4-AES-SPL-Specification
VMX0153MA-Data Sheet
VMX0153MA4-AES-SPL-Schematic Design Drawing
HV Datasheet US
