Stanford School of Medicine Beckman Mechanical Room Laboratory Air System Replacement
Industry: Hospitals and Healthcare, Laboratories
Type: Construction, Equipment
Description
Scope of Work
- Provide and Install Temporary Laboratory Air Compressor System:
- Powerex System Model MSET2006-SPL: Triplex 20HP Enclosed Scroll w/Desiccant Dryer System
- 183 SCFM @ 100 PSIG
- Rig and set temporary laboratory air compressor system.
- Provide and install temporary breaker in spare bucket/breaker location in Panel BA.
- Complete electrical POC
- Complete plumbing POC
- Install both temporary and (N) laboratory air system isolation valves.
- Startup and Test temporary laboratory air system.
- Provide and install (N) Powerex Rotary Tooth Air Compressor System (Model AES-MDRCO507-VFD)
- Duplex 50HP Powerex Rotary Tooth Laboratory Air System.
- 67-207 SCFM @ 100 PSIG each compressor.
- Specification and data sheets attached.
- Complete electrical POC including:
- 120 VAC power connection to master control panel
- 3 Phase main power to each compressor unit, with appropriate branch circuit protection and service disconnect.
- Power wire for air receiver automatic drain to be connected to master control panel.
- Control signal wiring between master panel and each compressor unit including (2) (N) electrical buckets and breakers.
- Complete plumbing POC

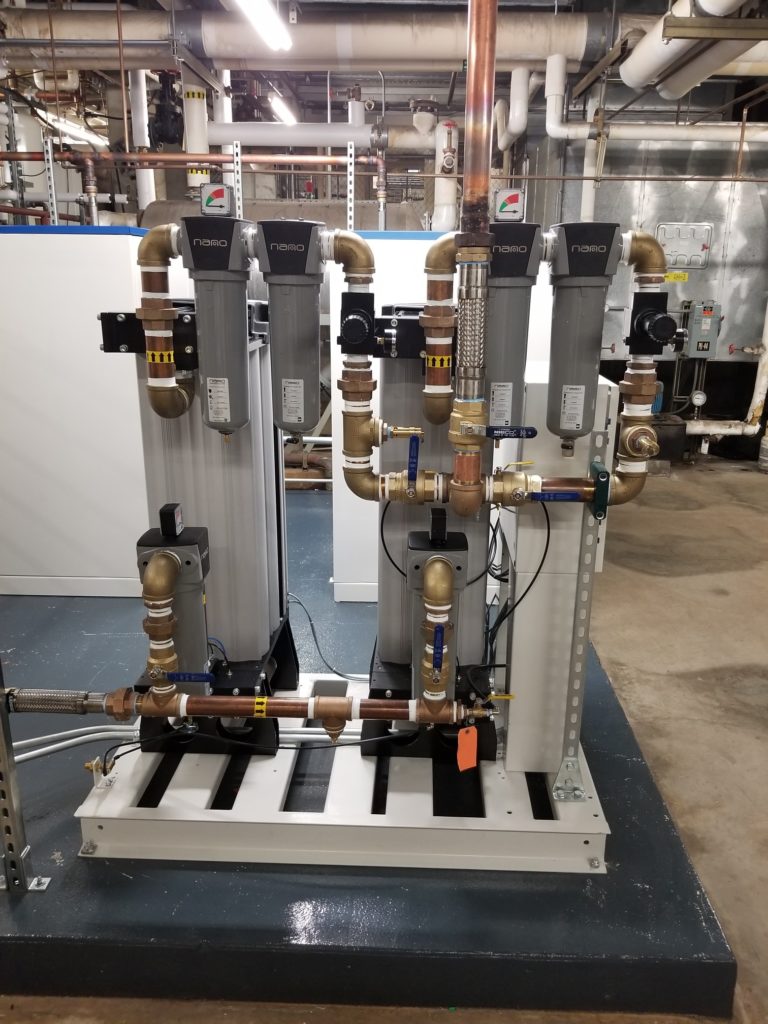

- Interconnecting piping connections between each compressor, receiver tank, and dryer skid.
- Final laboratory air system POC.
- System test
- Demo and remove temporary laboratory air system.
