AES-Dekker Medical-Laboratory Vacuum System Model AES-VMX0036MA3-40-DS
- (3) Dekker Titan single stage 3HP liquid ring vacuum pump skids.
- Capacity each vacuum pump 6.4 SCFM @ 24” HGVAC. *Note the liquid ring technology has a slight variance in CFM due to close tolerances between the vacuum pump impeller and vacuum pump body.
- System Components Include:
  - (3) TEFC Electric motors, 230/460 Volt, 3 Phase, Premium Efficiency.
  - (3) Patented DX5 Discharge Separator-Reservoirs with 5 Stage Air/Oil Separation, Including Coalescing Filter.
  - (3) Seal Fluid Isolation Valves
  - (3) Y-Strainers
  - (3) Seal Fluid Line Check Valves
  - (3) Separator Drain Valves
  - (3) Separator Sight Level Gauges
  - (3) Temperature RTD for Discharge Temperature Indication and High Temperature Protection.
  - (3) Air-Cooled, Heat Exchanger Packages with Main Motor Driven Fan and Fan Guard.
  - (3) Inlet Check Valves
  - Inlet Manifold Including:
    - (3) Inlet Isolation Valves
    - (3) Inlet Flex Connectors
    - Manifold Piping
  - Discharge Manifold Including:
    - (3) Individual Pump Drip Legs
    - (3) Discharge Check Valves
    - (3) Discharge Flex Connectors
    - Manifold Piping
  - (3) Sets of Hydraulic Hose Seal Fluid Line.
  - (3) Inlet Filters
  - (3) Vacuum Relief Valves
  - High/Low Fluid Level Switches Wired
  - (1) Common Oversized Baseplate to Accommodate Receiver (Split into 3 sections for door accessibility)*2 Stacked on one side, 1 on other side with receiver in middle
  - Vacuum Receiver
    - Vertical Vacuum Receiver 120 Gallon.
    - Receiver Isolation Valve
    - Receiver Sight Level Gauge
    - Receiver Drain Valve
  - (1) Dekker NEMA 12, UL Listed, 2015 NFPA Compliant Triplex Control Panel
  - 460V, 3-Phase, 60Hz, NEMA 12, UL Listed
  - (3) Power Supplies
  - Across the Line Magnetic Vacuum Pump Starters with 3-Phase Overload Protection and Through the Door Reset Switches
  - HOA Selector Switches
  - Pump Running Lights
  - Audio/Visual Alarm to Signal Lag Vacuum Pump Operation
  - Micro Processing Controller. Includes Frequent Start/Stop Protection, Automatic Pump Alternation, Hour Meters, and Status Displays.
  - Vacuum Transducer
  - Back Pressure Transducer
  - Auxiliary Dry Contacts (General Fault Alarm)
  - System Fault Light (RED)
  - Horn Silence Push Button
  - Alarm Reset Push Button
  - BacNet Capabilities

Description

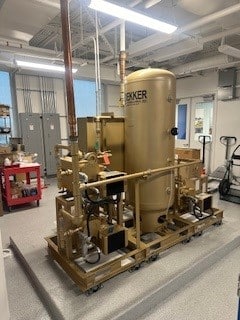

Installation of a (N) Medical-Laboratory Vacuum System.

Scope of Work

AES-Dekker Medical-Laboratory Vacuum System Model AES-VMX0036MA3-40-DS
- (3) Dekker Titan single stage 3HP liquid ring vacuum pump skids.
- Capacity each vacuum pump 6.4 SCFM @ 24” HGVAC. *Note the liquid ring technology has a slight variance in CFM due to close tolerances between the vacuum pump impeller and vacuum pump body.
- System Components Include:
  - (3) TEFC Electric motors, 230/460 Volt, 3 Phase, Premium Efficiency.
  - (3) Patented DX5 Discharge Separator-Reservoirs with 5 Stage Air/Oil Separation, Including Coalescing Filter.
  - (3) Seal Fluid Isolation Valves
  - (3) Y-Strainers
  - (3) Seal Fluid Line Check Valves
  - (3) Separator Drain Valves
  - (3) Separator Sight Level Gauges
  - (3) Temperature RTD for Discharge Temperature Indication and High Temperature Protection.
  - (3) Air-Cooled, Heat Exchanger Packages with Main Motor Driven Fan and Fan Guard.
  - (3) Inlet Check Valves
  - Inlet Manifold Including:
    - (3) Inlet Isolation Valves
    - (3) Inlet Flex Connectors
    - Manifold Piping
  - Discharge Manifold Including:
    - (3) Individual Pump Drip Legs
    - (3) Discharge Check Valves
    - (3) Discharge Flex Connectors
    - Manifold Piping
  - (3) Sets of Hydraulic Hose Seal Fluid Line.
  - (3) Inlet Filters
  - (3) Vacuum Relief Valves
  - High/Low Fluid Level Switches Wired
  - (1) Common Oversized Baseplate to Accommodate Receiver (Split into 3 sections for door accessibility)*2 Stacked on one side, 1 on other side with receiver in middle
  - Vacuum Receiver
    - Vertical Vacuum Receiver 120 Gallon.
    - Receiver Isolation Valve
    - Receiver Sight Level Gauge
    - Receiver Drain Valve
  - (1) Dekker NEMA 12, UL Listed, 2015 NFPA Compliant Triplex Control Panel
  - 460V, 3-Phase, 60Hz, NEMA 12, UL Listed
  - (3) Power Supplies
  - Across the Line Magnetic Vacuum Pump Starters with 3-Phase Overload Protection and Through the Door Reset Switches
  - HOA Selector Switches
  - Pump Running Lights
  - Audio/Visual Alarm to Signal Lag Vacuum Pump Operation
  - Micro Processing Controller. Includes Frequent Start/Stop Protection, Automatic Pump Alternation, Hour Meters, and Status Displays.
  - Vacuum Transducer
  - Back Pressure Transducer
  - Auxiliary Dry Contacts (General Fault Alarm)
  - System Fault Light (RED)
  - Horn Silence Push Button
  - Alarm Reset Push Button
  - BacNet Capabilities
